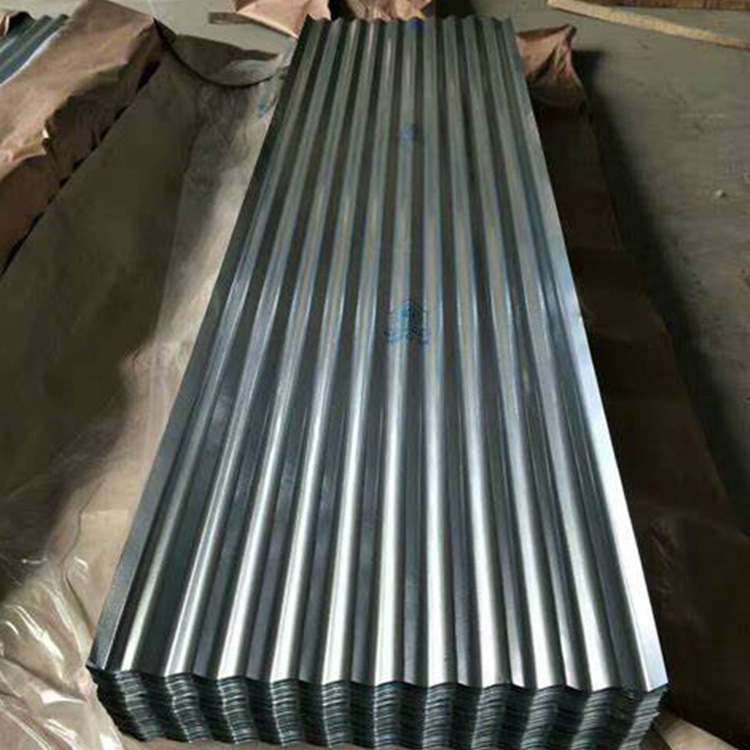

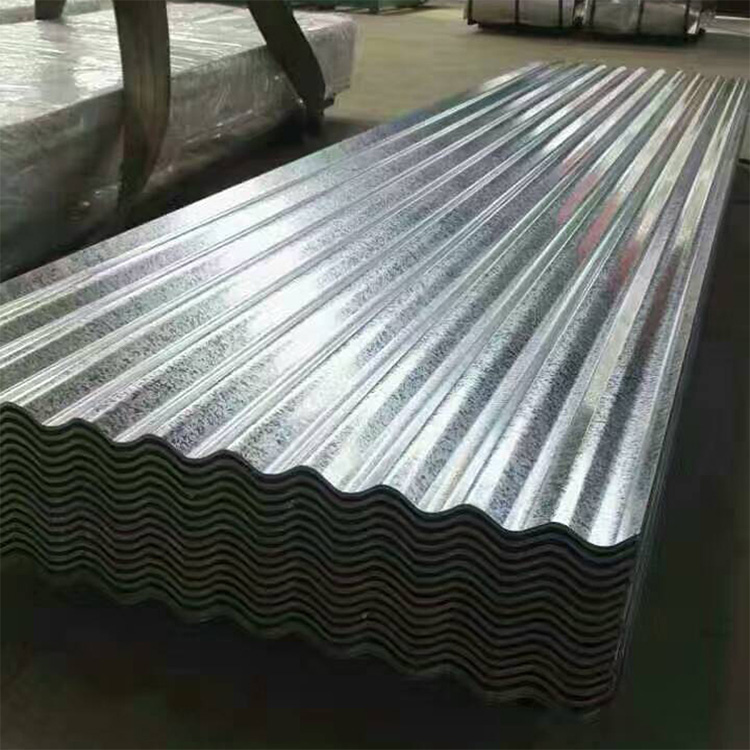

Metal Wall Sheet 20 gauge corrugated steel roofing steel sheet steel sheet with strong adhesion, anti-peeling, anti-aging, heat and humidity, smoked corrugated steel tiles are rolled by roll forming machine, the raw material can be different colours, if you are interested in our roofing products, please let me know the details of what you need, so that we can make it according to your requirements.
Raw material: galvanised steel, galvanised steel sheet, colour coated galvanised iron sheet.
Advantages of galvanised GI corrugated sheet:
(1)Light weight: 10-14kg/m2, equivalent to the weight of thirty brick walls.
(2) High strength: bending and compression resistance, used as building envelope and load-bearing structure.
(3)Bright colour: no need for surface decoration, shelf life of galvanised steel anti-corrosion layer.
(4)Convenient construction: short construction time
(5)Shock-proof, fire-proof, rain-proof, long life, maintenance-free
| Name | metal siding 20 gauge corrugated steel roofing sheets steel plate |
|
| Specification | as your requirement |
|
| Thickness | 0.15mm~3mm |
|
| Width | can be cut to any width |
|
| Length | can be cut to any length |
|
| Tolerance | +-1% |
|
| Grade | S280GD+Z,SGCC,DX51D+Z |
|
| Standards | JIS G3302, ASTM A526 |
|
| Surface Treatment | zinc coated |
|
| Packaging | Standard exporting packing or as client's requirement |
|
| Certificate | BV,ISO9001:2008 and Mill test Certificate |
|
| The above are the general items, for the special types, we can also meet your needs. |
|

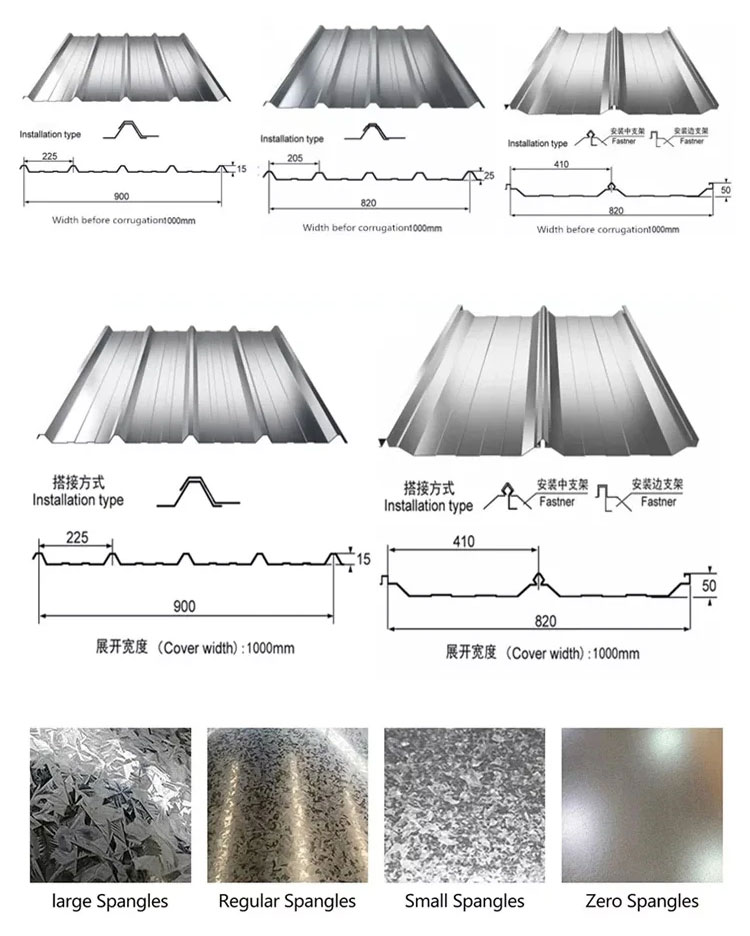

The difference between large and small zinc flowers of galvanized steel sheet
Normal zinc flowers (small zinc flowers, large zinc flowers, no zinc flowers) hot-dip galvanized steel sheet is a coating with obvious zinc flower morphology formed by the free growth of zinc grains after hot-dip galvanized steel sheet is hot-dip galvanized under the condition of antimony or lead in zinc liquid. Normal hot-dip galvanized steel sheet is mainly used in the form of exposure. The zinc flower galvanized sheet and the zinc flower galvanized sheet are only different in appearance, but not in quality
Therefore, the uses of hot-dip galvanized steel sheet with small zinc flowers, large zinc flowers, and no zinc flowers are the same.
1. Hot-dip galvanized steel sheet without zinc flowers
Adding zinc flower promoting elements to the zinc liquid, no zinc flowers are formed when the zinc layer solidifies, the grains are very fine, smooth and flat, so it is called a zinc flower-free product. It has excellent corrosion resistance and good coating performance.
2. Hot-dip galvanized steel sheet with large zinc flowers
Adding zinc flower promoting elements to the zinc liquid, beautiful zinc flowers are formed when the coating solidifies. In the early stage of use, the appearance performance is good, but the grains are coarse and there are slight unevenness.
3. Small zinc flower hot-dip galvanized steel plate
There is no strict definition of small zinc flower products. Generally, products with smaller zinc flowers are called small zinc flower products. Small zinc flower products are made of the same ingredients as large zinc flower products. In order to overcome the shortcomings of poor coating performance of large zinc flower products, various methods are used during cooling to inhibit the growth of zinc flowers, and it is best to form zinc flowers with very small diameters. Since it does not have a mirror-like smooth surface like large zinc flowers, nor is it as smooth as non-zinc flower products, it has good coating performance.

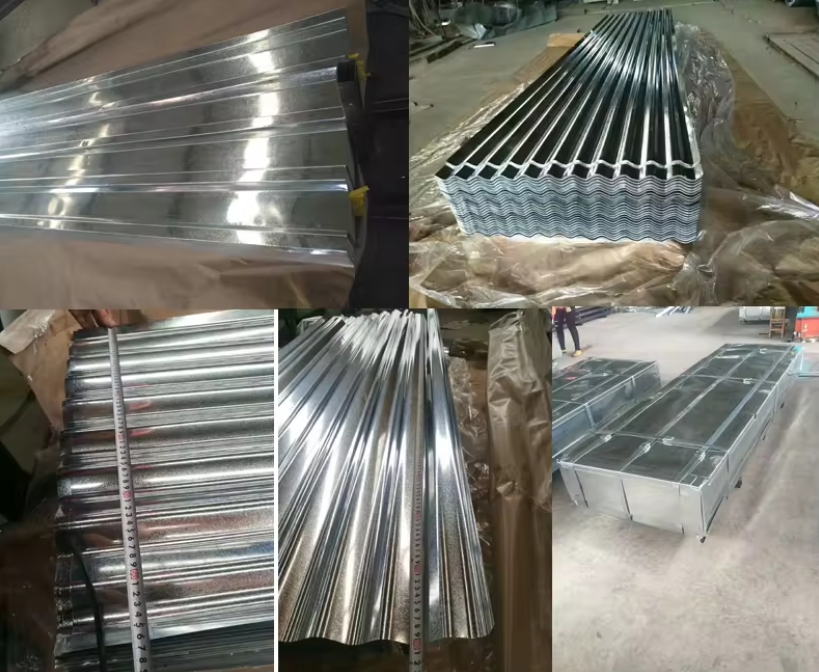

Customer Photos & Customer Feedback
Application :
HDG corrugated roofing sheet is widely used in industrial buildings, civil buildings, commercial buildings, steel structure houses, levelling works, factories, warehouses, idyllic plots, villas, kindergartens, exhibition halls, old house renovation and other roofs.
