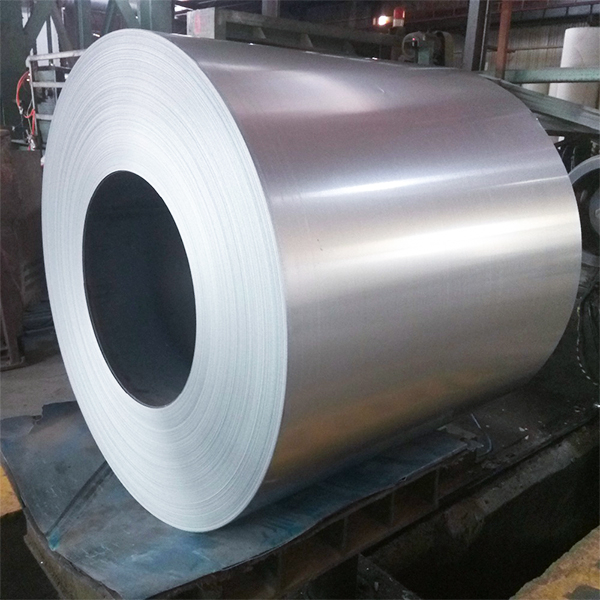

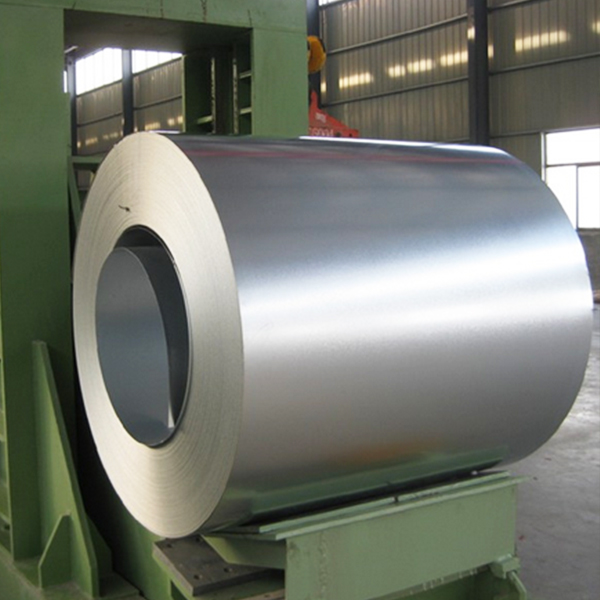

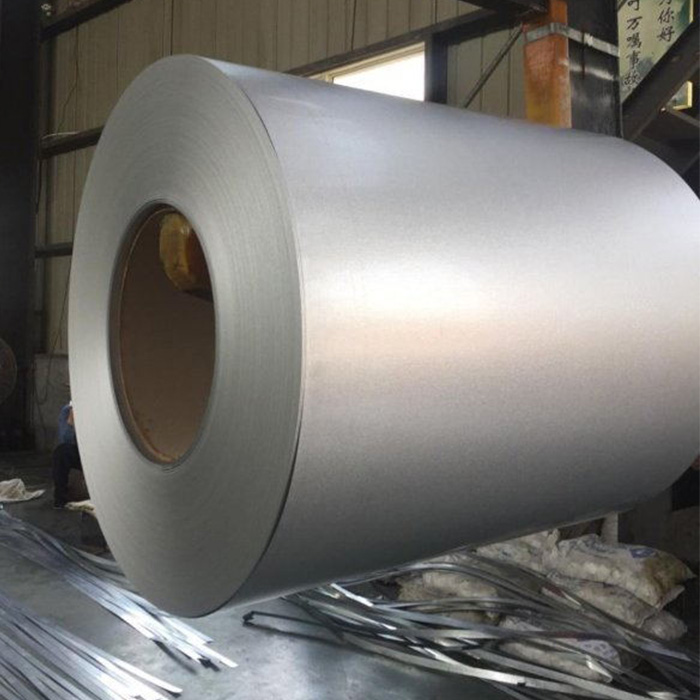

Galvalume Steel Coil Anti Finger Aluzinc JIS G 3321 55% 32 Gauge G550 Az150g Az120 0.43mm 0.4mm

Thickness

0.12-2.5mm

Width

600-1250mm

Tolerance

"+/-0.02mm

Zinc coating

Z30-150g/m2

Coil ID

508/610MM

Coil Weight

3-8 tons

Technique

Hot rolled, cold rolled

Package

seaworthy package

HRB

Soft Hard(<60),Medium Hard(60-85),Full Hard(85-95)

Certification

ISO 9001-2008,SGS,CE,BV

MOQ

25 TONS (in one 20ft FCL)

Delivery

15-20 days

Monthly Output

10000 tons

Surface treatment:

Oiled(O), Chromium(C), Phosphating(P),

Spangle

Regular Spangle,Minimal Spangle, Zero Spangle,Big Spangle

Standrad Packing

Dustproof kraftsheet
Iron Packing
Angle Protective
Packing Belt

Payment

30%T/T in advanced+70% balanced;irrevocable L/C at sight

Remarks

Insurance is all risks and accept the third party test

Mechanical properties of galvanized steel

Usage

Grade

Yield strength(MPa)

Tensile strength(MPa)

Punching galvnaized steel

DC51D+Z

-

270-500

DC52D+Z

140-300

270-420

DC53D+Z

140-260

270-380

Structure galvanized steel

S280GD+Z

≥280

≥360

S350GD+Z

≥350

≥420

S550GD+Z

≥550

≥560
