Hot Dipped Ppgi Galvanized Steel Sheet Coil

Model NO.：DX51D, DX52D, DX53D, SGCC
Thickness：0.12-6.0mm
Width：600-1850mm
Coil ID：508/610mm
Coil Weight：3-5tons
Zinc Coating：30-600G/M2
Spangle：Regular, Minimal, Zero, Big

Availability:

Quantity:



Inquire

Product Description

Name	hot selling dx51d z100 gi coil galvanized steel prepainted hot dipped ppgi galvanized steel sheet coil
Standard	AISI,ASTM,GB,JIS
Material	SGCC,SGCH,G550,DX51D,DX52D,DX53D
Brand	Shandong oulan steel
Thickness	0.15-6.0mm
Width	600-1500 mm
Tolerance	+/-0.01mm
Zinc coating	40-600g/m2
Surface treatment	Unoil,dry,chromate passivated, non-chromate passivated
Spangle	Regular spangle,minimal spangle, zero spangle,big spangle
Coil ID	508mm/610mm
Coil Weight	3-8 tons
Technique	Hot rolled, cold rolled
Package	Standard seaworthy export packing: 3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve
Certification	ISO 9001-2008,SGS,CE,BV
MOQ	22 TONS (in one 20ft FCL)
Delivery	15-20 days
Monthly Output	30000 tons
Description	Galvanized steel is mild steel with a coating of zinc. The zinc protects the steel by providing cathodic protection to the exposed steel, so should the surface be damaged the zinc will corrode in preference to the steel. Zinc steel is one of the most widely used products, used extensively in the building sector, automotive, agricultural and other areas where the steel needs to be protected from corrosion
Remarks	Insurance is all risks and accept the third party test

In the case of galvanised steel, the steel sheet is immersed in a bath of molten zinc to coat the surface with a layer of zinc. This is mainly produced by the continuous galvanising process, whereby rolled steel sheets are continuously dipped into the bath and the zinc is melted to make galvanised steel sheets; Alloy galvanised steel sheets. This steel sheet is also manufactured by dip plating using the hot rolling method, but is heated to about 500°C immediately after leaving the tank to form a zinc-iron alloy coating.

These galvanised coils have good paint adhesion and weldability.

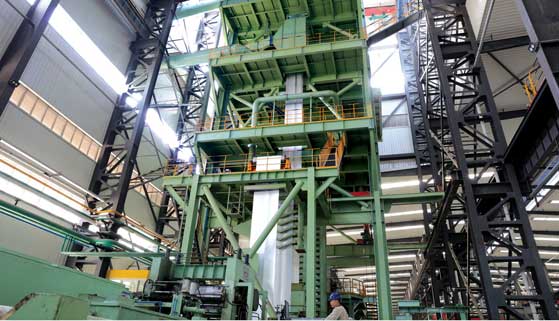

Galvanized Steel Coil production-line

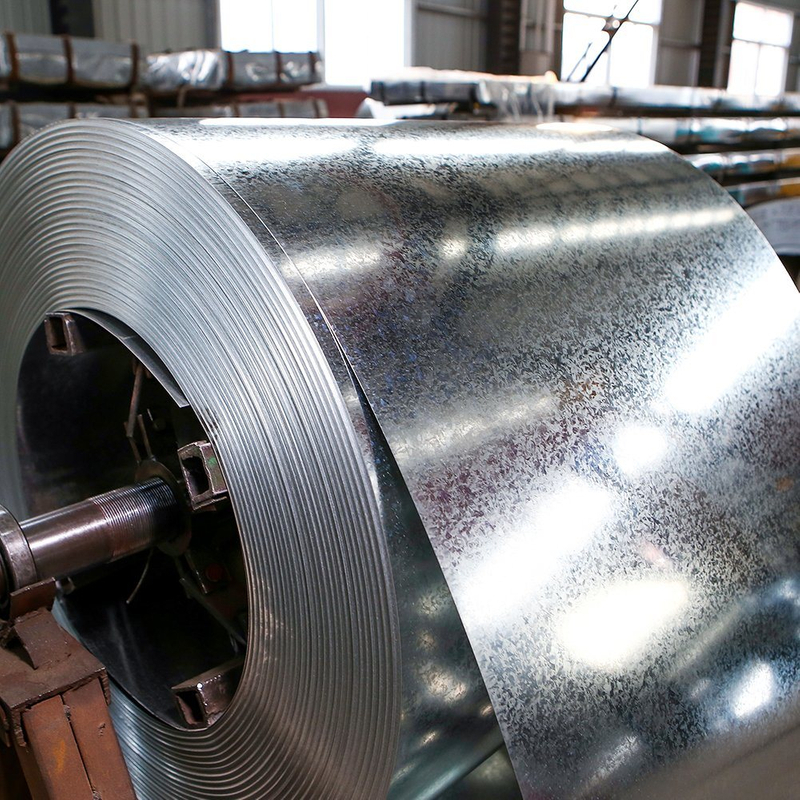

galvanized steel sheet plate

What are the advantages of galvanised coil?

This is because it is produced by applying a zinc coating on both sides by means of a hot-dip plating process. It combines both physical and electrochemical protective properties of Zn.

>>Cutting and machinability: It can meet the machining requirements of rolling, coiling and other processes.

>>Heat resistance: the general working temperature of ordinary hot-dip galvanised steel sheet is 230℃, 250℃ discolouration, while galvanised steel sheet can withstand 315℃ environment for a long time.

>>High reflectivity: the reflectivity to heat and light is 2 times higher than that of hot-dip galvanised steel sheet, and the reflectivity reaches more than 0.70, making it an ideal energy-saving building material.
