Galvanized Steel Coil Plate Z40 Prime Quality Gi 0.8mm China Wholesale For Construction Industry

Share to:

Galvanized Steel Coil Plate Z40 Prime Quality Gi 0.8mm China Wholesale For Construction Industry

After-sales Service: Check The Quality of Goods Before Receiving Them
Warranty: Check The Quality of Goods Before Receiving Them
Standard: ASTM, JIS, GB, AISI, DIN, BS
Certification: ISO
Surface Treatment: Galvanized
Technique: Hot Rolled

Availability:

Quantity:



Inquire

Z40 Prime Quality Gi 0.8mm China Wholesale For Construction Industry

Product Introduction

Model NO：SGCC, SGCH, G550, DX51D, DX52D, DX53D

Surface Treatment：Galvanized

Technique：Hot Dipped

Thickness: 0.12mm-6.0mm

Width: 600mm-1500mm

Top Paint: 15+5

Back Paint: 5-7

Coil ID: 508/610mm

Coil Weight: 3-8 Tons

Zinc Coating: 30-600G/M2

Gloss: 65%-80%

Feedback: Within 24 Hours

Hardness: G300- G550

Transport Package: Export Standard Package or as Request

Specification: AISI, ASTM, BS, DIN, GB, JIS

Trademark: Sino Steel

Origin: Shandong

HS Code: 721049000

Production Capacity: 250, 000tons/Year

Galvanized coils are made by dipping thin steel sheets into a molten zinc bath to form a layer of zinc on the surface. They are mainly produced by continuous galvanizing process, that is, the rolled steel sheets are continuously dipped into a molten zinc bath to form galvanized steel sheets; alloyed galvanized steel sheets. This type of steel sheet is also made by hot dip method, but after leaving the bath, it is immediately heated to about 500℃ to form an alloy film of zinc and iron. This type of galvanized coil has good coating adhesion and weldability.

Surface structure: Unpolished Polished

Normal zinc flower N NS

Small zinc flower M MS

No zinc flower F FS

Zinc-iron alloy ZF ZFS

Uf6c40f823e1d483f8f11cdf2b6045772C

Applications of Galvanized Steel

Z40 Prime Quality Gi 0.8mm China Wholesale For Construction Industry Galvanised steel sheet

It is used in construction, light industry, automobile, agriculture, animal husbandry and fishery industries.

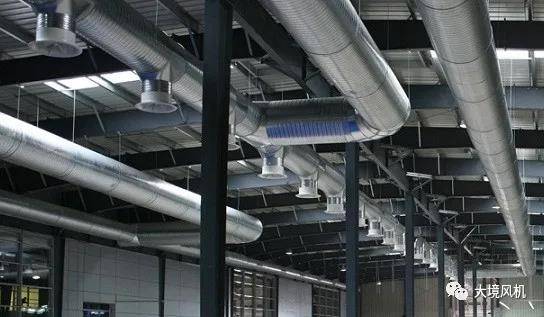

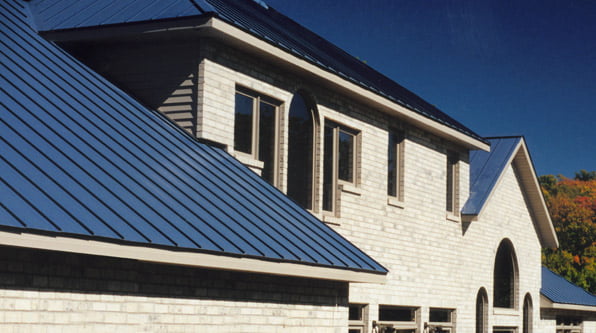

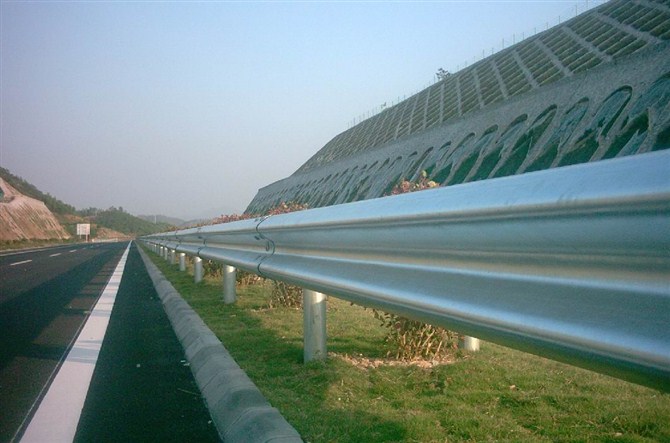

Such as building roofs, highway guardrails, sheet metal processing, roof grills, household appliance housings, ventilation ducts, chimneys, kitchen utensils, grain storage and transportation, meat and aquatic products frozen processing.

Galvanized sheet /Galvanized coil
Production Standard	ASTM, AISI,JIS, DIN, EN,GB, GOST
Material	DX51D,DX52D,DX53D,Z275,G90,G350,G450,G550,SGCC,,SGCH,GECC,,SPHC,A36,E235/S235JR,Q235B,E355/S355JR,Q345A,Q345B,Q345C,Q345D,Q345E,ST35,ST37,ST45,ST52,DC01,DC02,SS400,HC340LA,HC380LA,HC420LA,B340LA,B410LA
Size	Thickness	0.105-4mm
	Width	600-1250mm
	Tolerance	+/-0.02mm
Zinc coating	Z30-600g/㎡
Surface	Bright,Mill, polished, oiled, galvanized, or as required
Payterm	Ex-work, FOB, CIF, CFR, etc
Payment	T/T, L/C, Western Union, Alibaba Trade Assurance, etc
Delivery Time	Within 3-5 days for our stock size, 15-20 days for our production
Package	Dustproof kraft sheet Iron packing Angle protective packing belt
MOQ	25 TONS (in one 20ft FCL)
Sample	Free and available
Quality	Mill Test Certificate, ISO9001, CE,SGS, TVE
Processing Service	Bending, Welding, Decoiling, Cutting, Punching

Mechanical properties of galvanized steel
Usage	Grade	Yield strength(MPa)	Tensile strength(MPa)
Punching galvnaized steel	DC51D+Z	-	270-500
	DC52D+Z	140-300	270-420
	DC53D+Z	140-260	270-380
Structure galvanized steel	S280GD+Z	≥280	≥360
	S350GD+Z	≥350	≥420
	S550GD+Z	≥550	≥560

Galvanized sheet /Galvanized coil
Production Standard	ASTM, AISI,JIS, DIN, EN,GB, GOST
Material	DX51D,DX52D,DX53D,Z275,G90,G350,G450,G550,SGCC,,SGCH,GECC,,SPHC,A36,E235/S235JR,Q235B,E355/S355JR,Q345A,Q345B,Q345C,Q345D,Q345E,ST35,ST37,ST45,ST52,DC01,DC02,SS400,HC340LA,HC380LA,HC420LA,B340LA,B410LA
Size	Thickness	0.105-4mm
	Width	600-1250mm
	Tolerance	+/-0.02mm
Zinc coating	Z30-600g/㎡
Surface	Bright,Mill, polished, oiled, galvanized, or as required
Payterm	Ex-work, FOB, CIF, CFR, etc
Payment	T/T, L/C, Western Union, Alibaba Trade Assurance, etc
Delivery Time	Within 3-5 days for our stock size, 15-20 days for our production
Package	Dustproof kraft sheet Iron packing Angle protective packing belt
MOQ	25 TONS (in one 20ft FCL)
Sample	Free and available
Quality	Mill Test Certificate, ISO9001, CE,SGS, TVE
Processing Service	Bending, Welding, Decoiling, Cutting, Punching

Mechanical properties of galvanized steel
Usage	Grade	Yield strength(MPa)	Tensile strength(MPa)
Punching galvnaized steel	DC51D+Z	-	270-500
	DC52D+Z	140-300	270-420
	DC53D+Z	140-260	270-380
Structure galvanized steel	S280GD+Z	≥280	≥360
	S350GD+Z	≥350	≥420
	S550GD+Z	≥550	≥560
