Corrugated PPGI/PPGL 0.12-1.5mm Galvanized Steel Roofing Tile Building Material Sheet

Model No.：SGCC, Sgch, JIS G3302, Dx51d, Dx52D, Dx53D
Hardness：Soft, Half Hard and Hard
Price Item：Fob, CIF, CFR, CNF, etc.
Payment Term：T/T Western Union L/C
Thickness：0.12-1.5mm
Width：600mm-1150mm
Length：1-11.8m
Color
Regular Color: Bright Red, Sea Blue and White Grey
Zinc Coating：30-275G/M2
Paint：10~25um/5~12um
Coating Type：PE, SMP, Jd, HDP, PVDF
Logo：as Your Request
Tolerance：+/-0.02mm

Availability:

Quantity:



Inquire

Product Description

It is a product made of a substrate, which is coated with one or several layers of organic coating after surface pretreatment and then cured.

Colour coated coil substrates include hot-dip galvanised coil, aluminium zinc coated coil and aluminium coil.

It is named for the variety of different colours of organic paint colour steel coil, or colour coated coil for short.

Or PPGI coil, or PPGL coil.

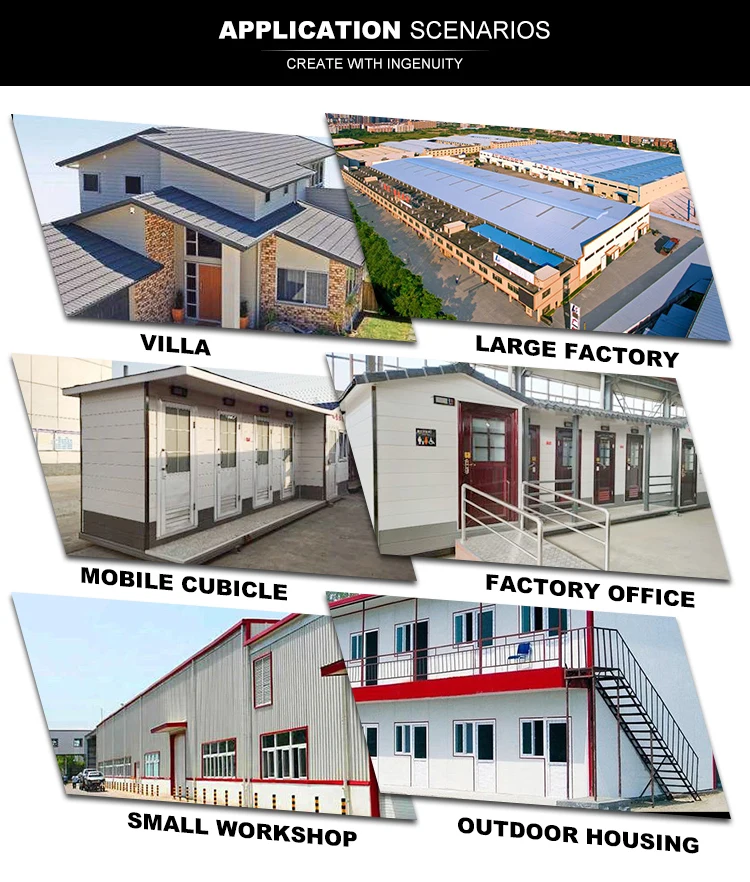

Uses: roofs, walls, fences, workshops, partitions, partitions, suspended ceilings and other buildings.

Type	effective width	feed width	thickness
FX28-207-828	828/935	1000	0.1-0.8
FX23-183-1100	1100-1180	1250	0.1-0.8
FX27-190-950	950/1040	1200	0.1-0.8
FX35-185-740	740/800	960	0.1-0.8
FX30-152-760	760-820	980	0.1-0.8
FX25-210-630	630/680	750	0.1-0.8
FX25-210-840	840/890	1000	0.1-0.8
FX35-125-750	750/820	1000	0.1-0.8
FX50-410-820	820/840	1000	0.1-0.8
FX75-200-600	600/650	1000	0.1-0.8
FX76-150-688	688/750	1000	0.1-0.8
FX15-225-900	900 / 940-950	1000	0.1-0.8
FX28-205-820	820/910	1000	0.1-0.8
FX12-110-880	880 / 900-910	1000	0.1-0.8
FX-25-205-1025	1025/1100	1200	0.1-0.8

4.

Product Name	Cold Steel tile
Surface	Coated
Material	ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345
Width	600mm-1250mm
Length	Customer's Requirement
Surface treatment	Coated,Galvanized,Embossed

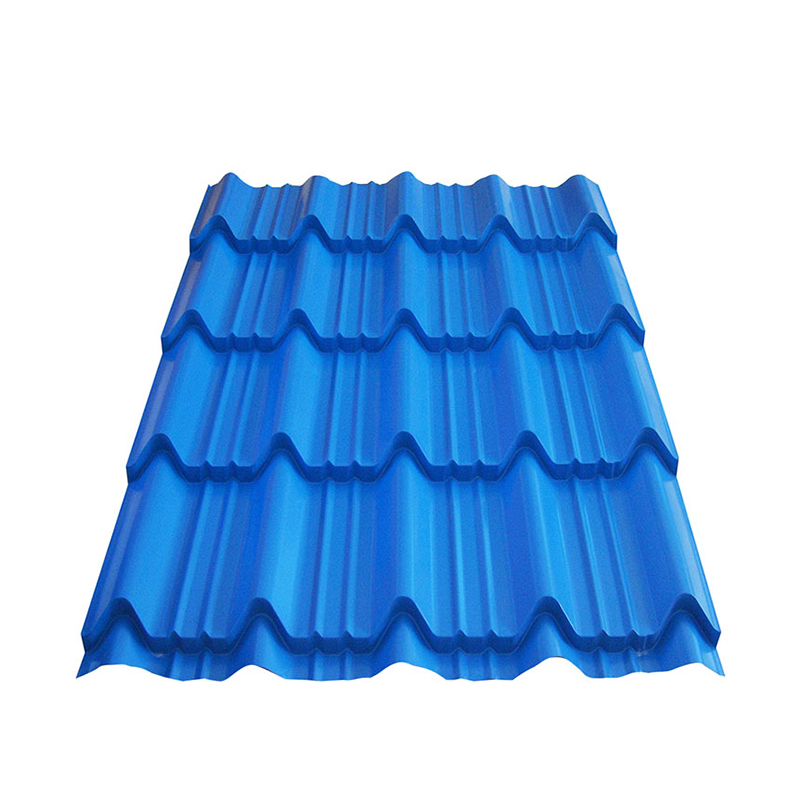

blue roofing tile

1.Self-Cleaning

With anti-static function, thesurface is smooth and cleanwithout frequent cleaning

2.Lightweight

Easy to transport, installationlong life, no light pollution, to meet the need of users of a variety of plate ,to achieve ener-gy-saving and environmentalprotection.

3.Environmental Protection

Energy conservation andfriendly environment ,very fewhazardous substances release.

4.EASY INSTALLATION

Easy installation, shorten theconstruction period, save thecost.
